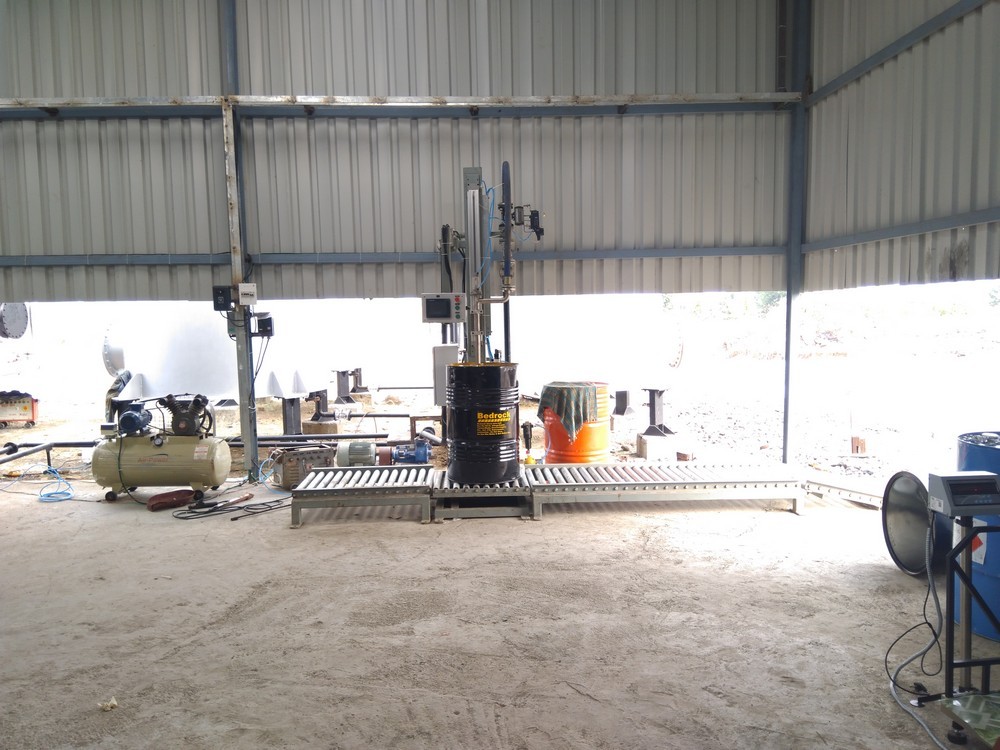

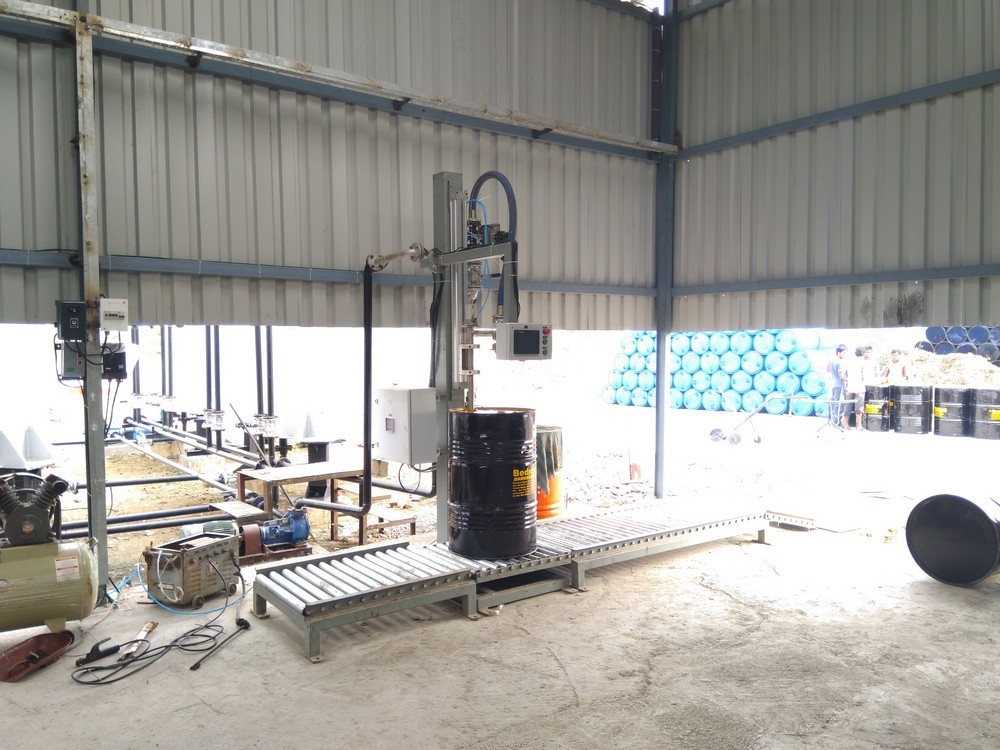

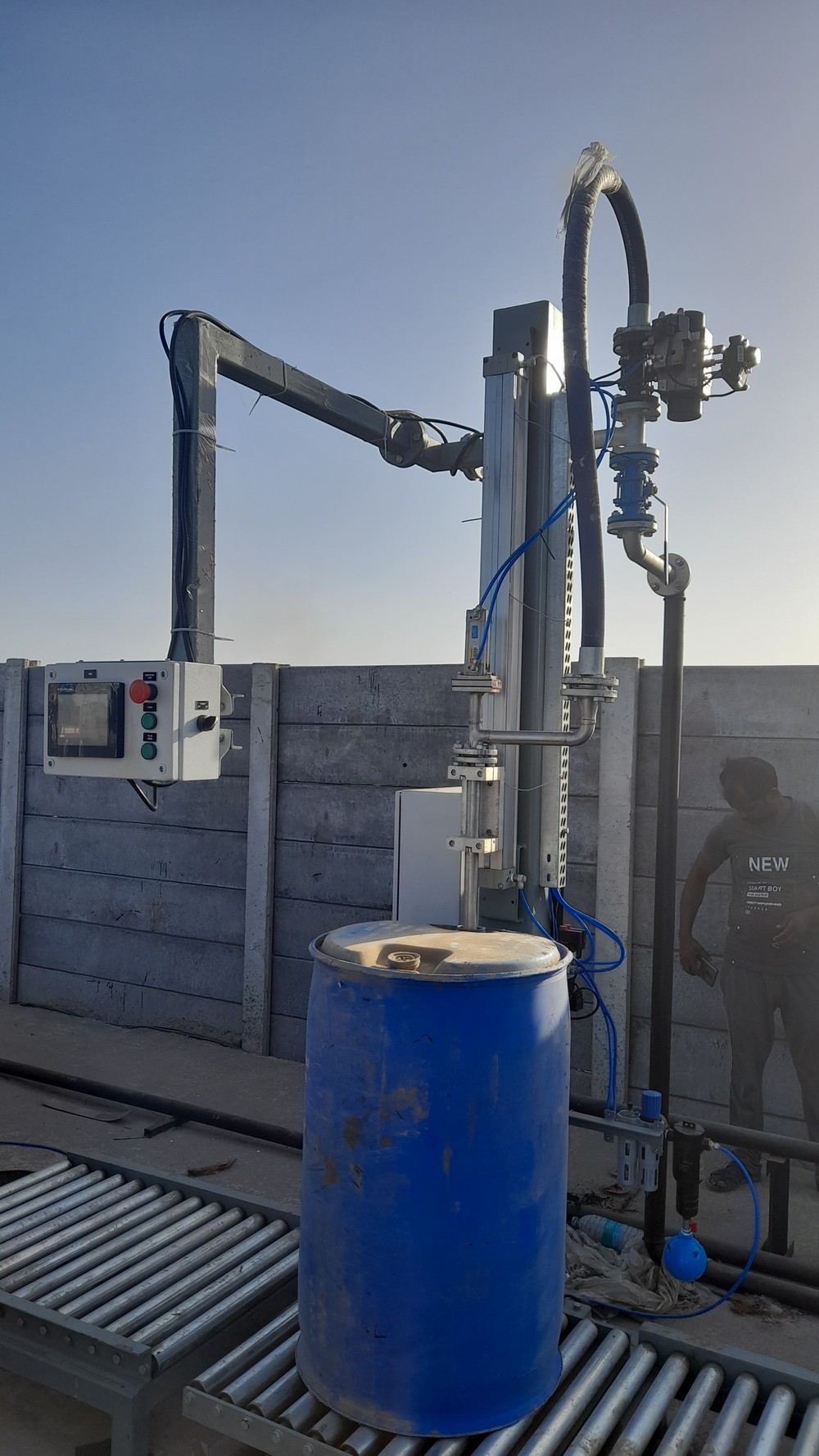

AMT TECHNO’s Drum Filling Unit is designed for customers who want to dispatch Bitumen Emulsion and similar products in drums.
This equipment is easy to use and cost-effective solution for filling drums. Drum Filling Unit is enabling customer fast and accurate packing in drums of products like bitumen emulsion, bitumen, polymer modified bitumen, viscous oil, foaming liquid, edible oil, liquid food and beverages.
| DRUM FILLING UNIT | |||||
|---|---|---|---|---|---|
| Drum Filling Weighing Capacity | 300 Kg | ||||
| Drumming Line | 1 Line | ||||
| Speed | 40 to 45 Drums Per Hour Depends On Pipeline Pressure | ||||
| Filling Accuracy | ±1 KG | ||||
| Nozzle Size | 1” (25MM) | ||||
| Line Size | 1 ½” (40MM) | ||||
| Type Of Filling | Auto/Manual Selectable | ||||
| Drum Loading | Manual | ||||
| WEIGHING SCALE DETAILS | |||||
|---|---|---|---|---|---|
| Scale Capacity | 1,000 Kg | ||||
| Least Count of Scale | 200 G | ||||
| Accuracy of Reading | ±200 G | ||||
| Weighing Scale Size | 800MM × 800MM | ||||
| MOC Weighing Scale Base | Mild Steel Color Coated | ||||
| Load Cell | IP 65 Protected | ||||
| Rollers | 10 No. of 50MM Diameter Each | ||||
| MOC Of Rollers | Mild Steel Zinc Plated | ||||
| Weight Indicator | Microprocessor Based | ||||
| Display Of Indication | Red LED | ||||
| CONTROL PANEL AND PNEUMATIC DETAILS | |||||
|---|---|---|---|---|---|
| Fill Control | Coarse & Fine With Pneumatic 2 Position Valve | ||||
| Solenoid Coils | 24 VDC | ||||
| Make Of Solenoid Valve | SMC/Aira | ||||
| Nozzle UP/DOWN Movement | By Road less Cylinder MAKE: SMC |
||||
| Air Piping | PVC | ||||
| Ball Valve | Two Way 3Pic Ball Valve With 2Position NAMUR | ||||
| MOC Of Nozzle | SS316 | ||||
| Nozzle Valve | YES | ||||
| Filling Nozzle Lifting Mechanism | Pneumatically Operated Up and Down Movement | ||||
| Panel Enclosure | Rittal | ||||
| SMPS | SCHNEIDER | ||||
| HMI PLC | SCHNEIDER | ||||
| HMI SIZE | 5.7” | ||||
| BEFORE AND AFTER WEIGING SCALE ROLLER LINE DETAILS | |||||
|---|---|---|---|---|---|
| Roller Line Before Weighing Scale | 1 Meter in Length and Approximate 14 No. Roller of 50MM Diameter Each | ||||
| Rollers For Weighing Plate Form | 800MM In Length and Approximate 11 No. Roller of 50MM Diameter Each | ||||
| Roller Line After Weighing Scale | 2 Meter In Length and Approximate 27 No. Roller of 50MM Diameter Each | ||||
| Slope At End of 2 Meter Roller Line | 500MM In Length and Approximate 10 No. Roller of 50MM Diameter Each | ||||
